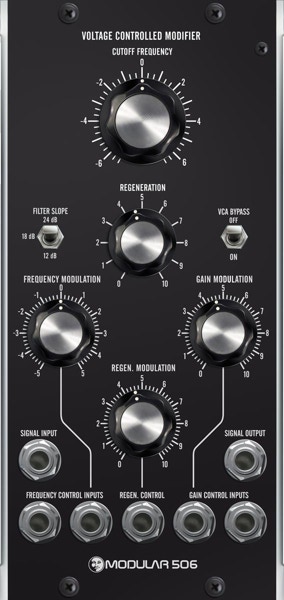

M 506

Voltage Controlled Modifier

The MODIFIER module is a combination of voltage controlled low pass filter and voltage controlled amplifier connected in series.

The VCF is a ladder type lowpass filter featuring switchable slopes (12/18/24 dB/oct) and voltage controllable regeneration. In addition to the manual frequency and resonance dials there are three attenuated control voltage inputs for filter cutoff (bipolar), resonance and amplifier gain.

The VCA bypass switch opens the amplifier.

TOP

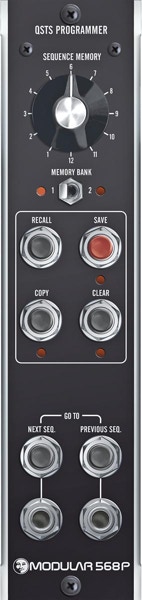

M 568 P

QSTS Programmer

The QSTS PROGRAMMER MODULE enables the user to save and recall trigger settings from the 568 sequencer. The 568P can save 2 x 12 settings in its non volatile memory.

The rotary switch selects one of 12 memory slots. Two memory banks are selected via the bank toggle switch. Four push buttons control the memory operations.

TOP

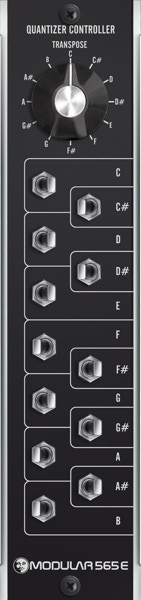

M 565 E

Quantizer Controller

The  QUANTIZER CONTROLLER allows to limit the output voltages generated by the M565v2 Quad Quantizer to any desired key, chord or note interval. Using the array of 12 keyboard-like arranged toggle switches, notes can be activated or deactivated in any combination. The adjusted scale works over 10 octaves and controls all four quantizing-units in parallel.
