EFFECT MODULES

M 530

Digital Delay

M 531

Analog Delay

M 532

Phase

Shifter

M 530

Voltage Controlled

Stereo Digital Delay

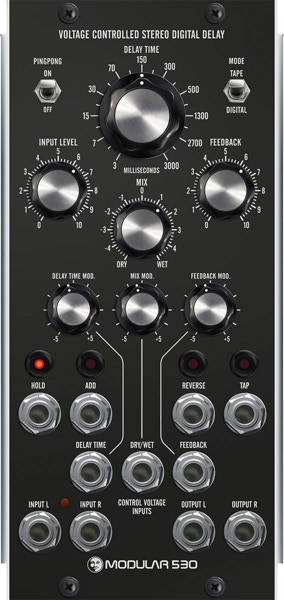

The 530 Voltage Controlled Digital Delay is a high quality stereo delay with a lot of unique features. Tape, digital and ping-pong modes of delay, hold with overdub and delicate delay time and feedback control in combination with CV and trigger control over various parameters make this module not only a modular FX unit but also an instrument on its own.

·  Delay time 3–3000 ms

·  Tap and clock synchronization of delay

·   Time Reverse delay mode

·   Hold mode samples up to 40 seconds of audio (hold mode)
     with overdub feature (add)

·    Trigger control over Hold, Add and reverse

·    CV control over delay time, dry/wet mix and feedback

TOP

M 531

Voltage Controlled

Analog Delay

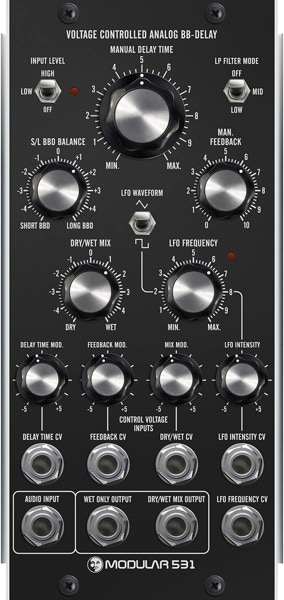

The 531 BBD Analog Delay is an analogue delay module which includes two separate bucket brigade delay lines. A short one with 1024 stages and a long one featuring 4096 stages. Both delays work simultaneously and one can fade between them to create multi-tap delay effects.

An advanced clock noise cancellation circuit reduces unwanted BBD noise without filtering higher frequencies of the audio ­signal. Most parameters are voltage controlled, allowing integration in a complex modular setup.

TOP

New: M 532

Voltage Controlled

Phase Shifter

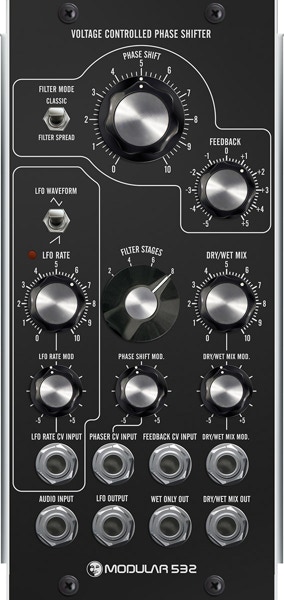

The M 532 Voltage Controlled Phase Shifter is a phaser module based on a classic phaser design.

Full analogue design with up to eight phasing stages.
Built-in voltage controlled LFO (triangle and rising sawtooth waveforms).

The „LFO OUTPUT” is normalized to the „PHASER CV INPUT“.
Voltage control over phase shift, feedback and dry/wet mix.

With „FILTER MODE“ in the „CLASSIC“ position all phasing stages receive the same phase shift information. The „SPREAD“ mode is supplying them with different phase shift information.

TOP
