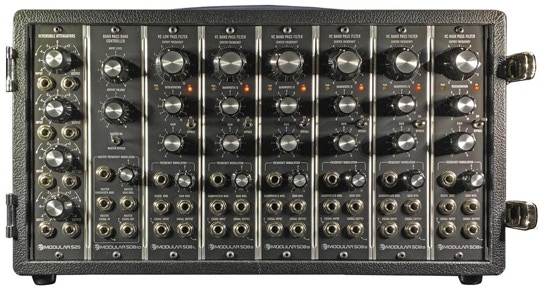

The MOON 6FB SIX BAND VOLTAGE CONTROLLED FILTERBANK is a modular filter bank, housed in a vintage style tolex covered wooden cabinet, one row in
standard height for eight units. With front lid and power supply (±15 V/+5 V).

It consists of the following eight modules (LtoR):

1 x M525           Quad Reversible Attenuator Module

1 x M508io      Bank Controller

1 x M508L        VC Low Pass Filter

4 x M508B        VC Band Pass Filters

1 x M508H        VC High Pass Filter

New: MOON 6FB

Modular Six-Band Voltage Controlled
Filter Bank


Each of the filters can be voltage controlled separately or in common and has 6dB/octave (band pass) respectively 12 dB/octave (low pass, high pass).

The 508io will allow the common voltage control of all filters. It does provide a central input and a central output for the audio signal.

Patching the inputs and outputs of the individual filter modules will override the internal connections from/to
the 508io.

VIEW PDF TO READ MORE

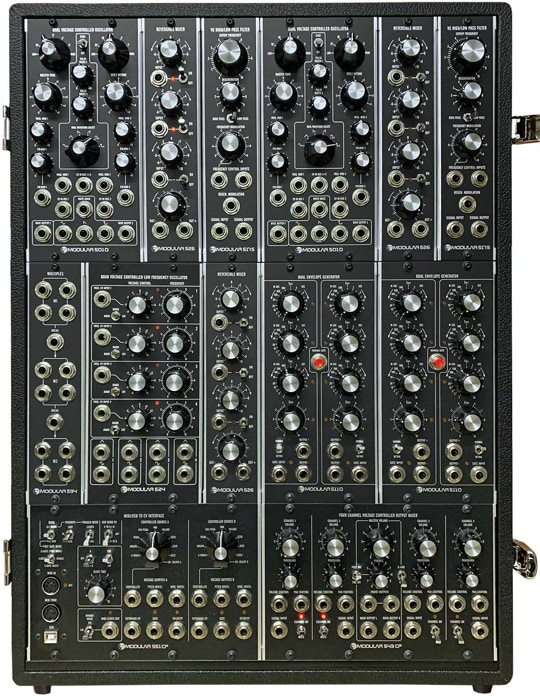

MOON 2VS

Two Voice

Synthesizer System

Vintage style tolex covered wooden cabinet with two rows

in standard height for 8 units each and one row for modules

in CP size. With front lid and power supply (±15 V/+5 V).

The normalization scheme allows to operate it without any patch cord.

Modules included:

2 x M 501D Dual Oscillator

2 x M 526 Mixer

2 x M 517S  Low Pass/High Pass Filter

2 x M 511D  Dual Envelope Generator

M 524 Quad Low Frequency Oscillator

M 526 Mixer

M 594 Multiple

M 551CP Dual Midi to Voltage Converter

M 543 CP 4 Channel CV Output Mixer

TOP

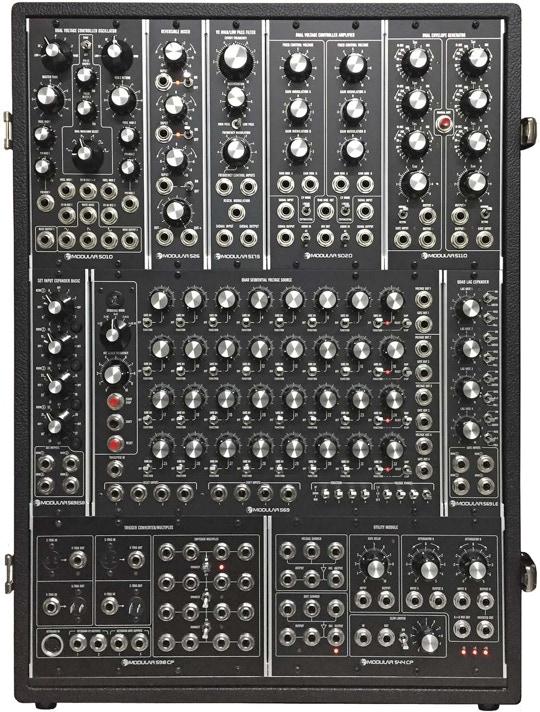

MOON CSS

Compact Sequencing Synthesizer System

Vintage style tolex covered wooden cabinet with two rows in standard height for 8 units each and

one row for modules in CP size.

With front lid and power supply (±15 V/+5 V).

Modules included:

M501D Dual Oscillator,

M526 Mixer,

M517S Low Pass/High Pass Filter,

M502 D Dual VCA,

M511D Dual Envelope Generator,

M569 Sequencer with M569ESB Set Expander

and M569LE Lag Expander,

M598CP Trigger Converter/Multiples,

M544CP Utility Module

TOP

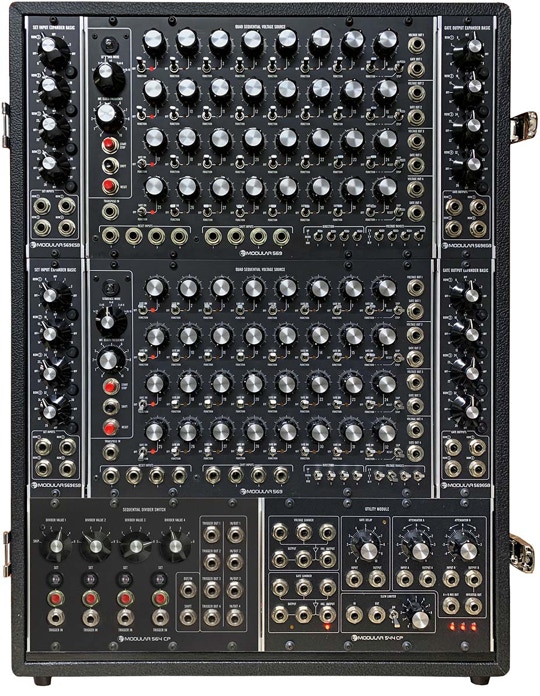

MOON 8SQ

Eight Track

Sequencing System

Vintage style tolex covered wooden cabinet with two rows in standard height for 8 units each and one row for modules in CP size. With front lid and power supply (±15 V/+5 V)

Modules included:

2 x M 569 Quad Sequential Voltage Source

2 x M 569 ESB Basic Set Expander

2 x M 569 EGB Basic Gate Expander

M 544 CP Utility Module

M 564 CP Sequential Divider Switch

TOP

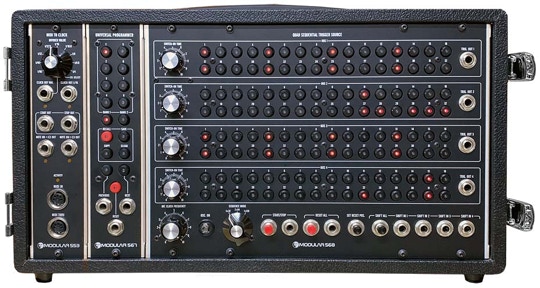

MOON 4TS

Trigger Sequencer

w/Programmer &

Clock Module

Vintage style tolex covered wooden cabinet, one row in standard height for 8 units.

With front lid and power supply (±15 V/+5 V).

Modules included:

M 553  Midi-to-Clock

M 567 Programmer

M 568 Quad Sequential Trigger Source
